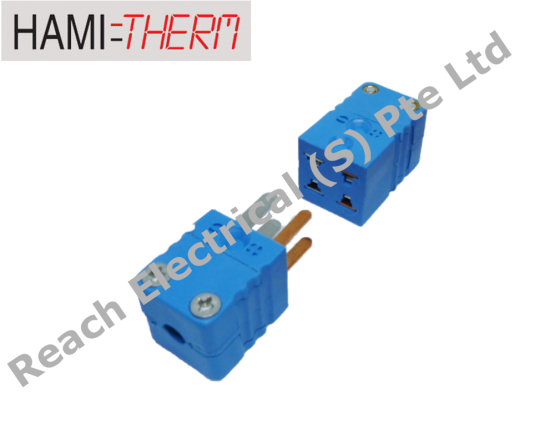

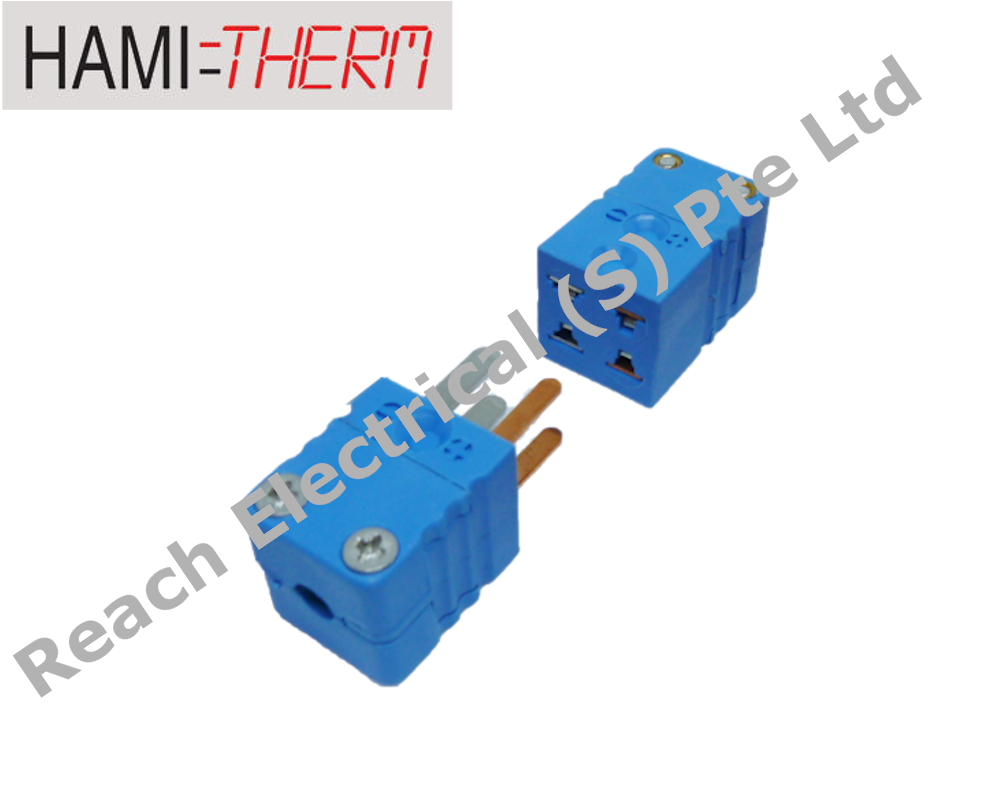

HAMITHERM – CMPDL & CMJD – Miniature Duplex Connector & Plug (200°C)

Description

Application:

Connector for thermocouple and RTD circuits. Is very well suited for 4-wire RTDs. Solid pin design ensures good contact even in demanding applications. Hollow pin design offers a good quality product at competitive pricing for less frequently used connectors.

Construction:

• Glass filled thermoplastic body with original thermocouple material pins and spring loaded inserts.
• Polarized pins.
• Central cover screw design for quick wiring.
• Molded barriers prevent short circuit.
• Captive cover screw for easy assembly.
• Connects with standard horizontal and vertical panels.
