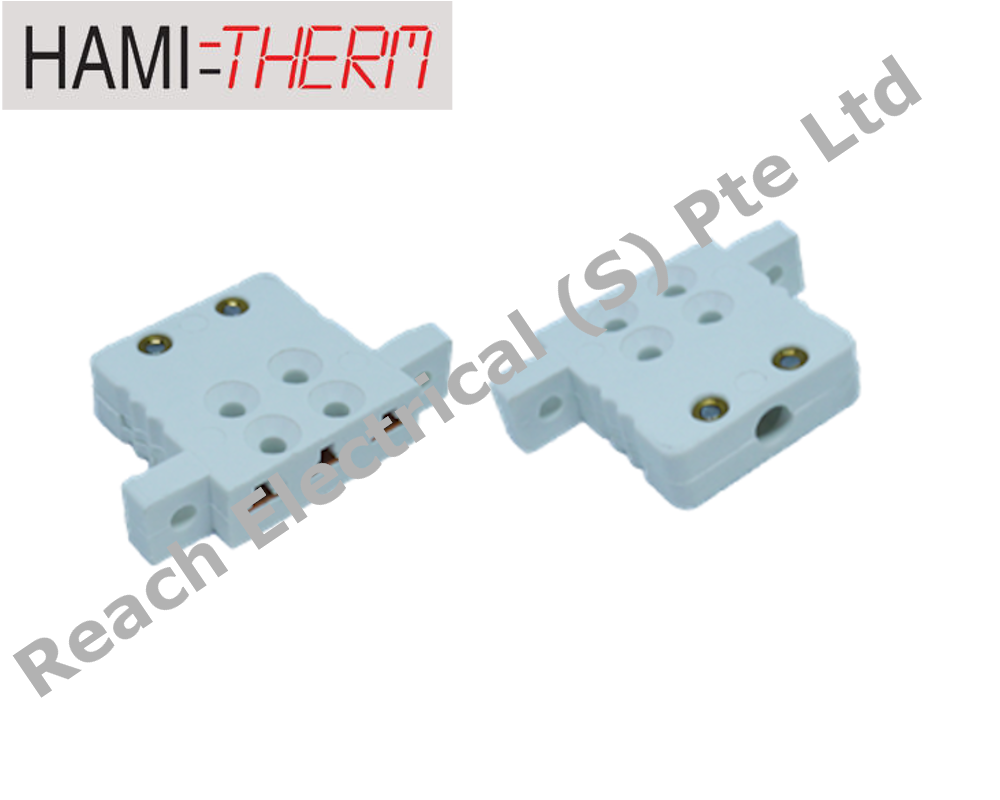

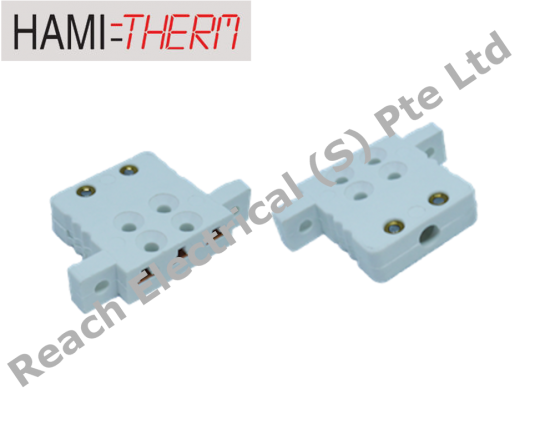

Hamitherm – PMITL – Panel Standard Insert Three Pin Lugged (200°C)

Description

Application:

Panel Insert for thermocouple and RTD circuits.Suited for wires and mineral insulated cable. Third connection for ground or continuous shield or for three wire RTD’s.Can be mounted in a single circuit version or in rows in customer panel. Mounting by means of two M 2,5 screws.

Construction:

• Glass filled thermoplastic body with original thermocouple material pins and spring loaded inserts.
• Polarized pins ensure proper connection.
• Easy wire connection through sandwich construction.
• Molded barriers prevent short circuit.
• Rugged one body design.
