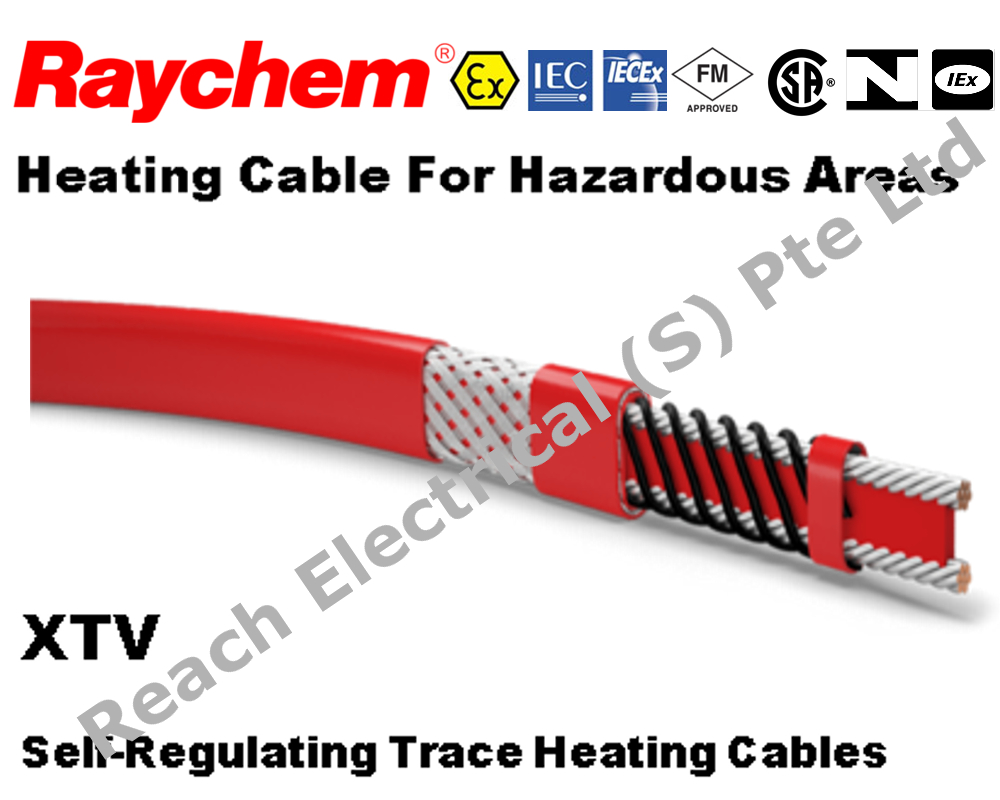

Raychem XTV Self-Regulating Trace Heating Cables (120°C)


The XTV family of Raychem self-regulating heat trace cables provides solutions for industrial pipe freeze protection and process temperature maintenance applications requiring high power output. Raychem XTV heat trace cable can withstand temperatures up to 482°F (250°C) and provide process temperature maintenance to 250°F (121°C). The heating cables are configured for use in nonhazardous and hazardous (classified) locations, including areas where corrosives may be present.

The power output of self regulating electric heat tracing depends on the heating cable temperature and can provide up to 20 W/ft. at 50°F (10°C). Raychem XTV heat trace cables meet the requirements of the U.S. National electrical Code and the Canadian Electrical Code.

Industries Served:
Chemical and Pharmaceutical
Food and Beverage
Oil and Gas

5XTV1-CT-T3 P000001668
5XTV2-CT-T3 P000001669
10XTV1-CT-T3 P000001671
10XTV2-CT-T3 P000001672
15XTV1-CT-T2 P000001674
15XTV2-CT-T3 P000001675
20XTV1-CT-T2 P000001676
20XTV2-CT-T2 P000001677
